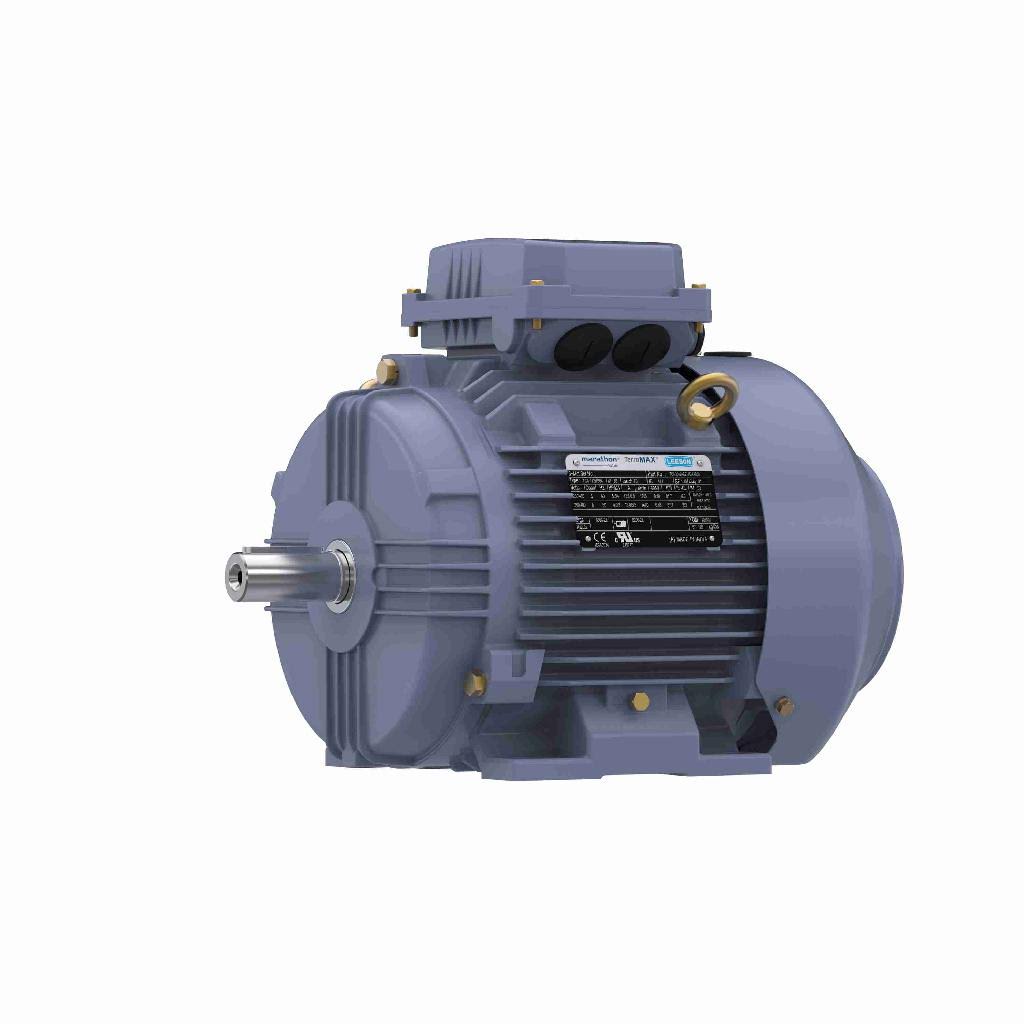

3 HP 1200 RPM 230/460 Volts 3 PH TEFC 112M Motor A1126
Sale price
$33.99
Regular price $153.05
Skip to product information
3 hp 2.2 kw 1200 RPM, 8.8/4.4 amps 230/460 Volts Three Phase MotorIEC 112M Frame keyed shaft 28mm x 60mmTEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)Inverter Rated Insulation System (IRIS) - Service Factor: 1.15TEFC = Totally Enclosed Fan Cooled; Class F Insulation1 Year Manufacture Warranty12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948,Conformite European. 112MTFC6576, TCA2P23AE211GAA009 Replaces Leeson C112T11FZ21A, 193302.60Replaces Marathon R323A
3 HP 1200 RPM 230/460 Volts 3 PH TEFC 112M Motor A1126
Sale price
$33.99
Regular price $153.05
Shipping calculated at checkout.
